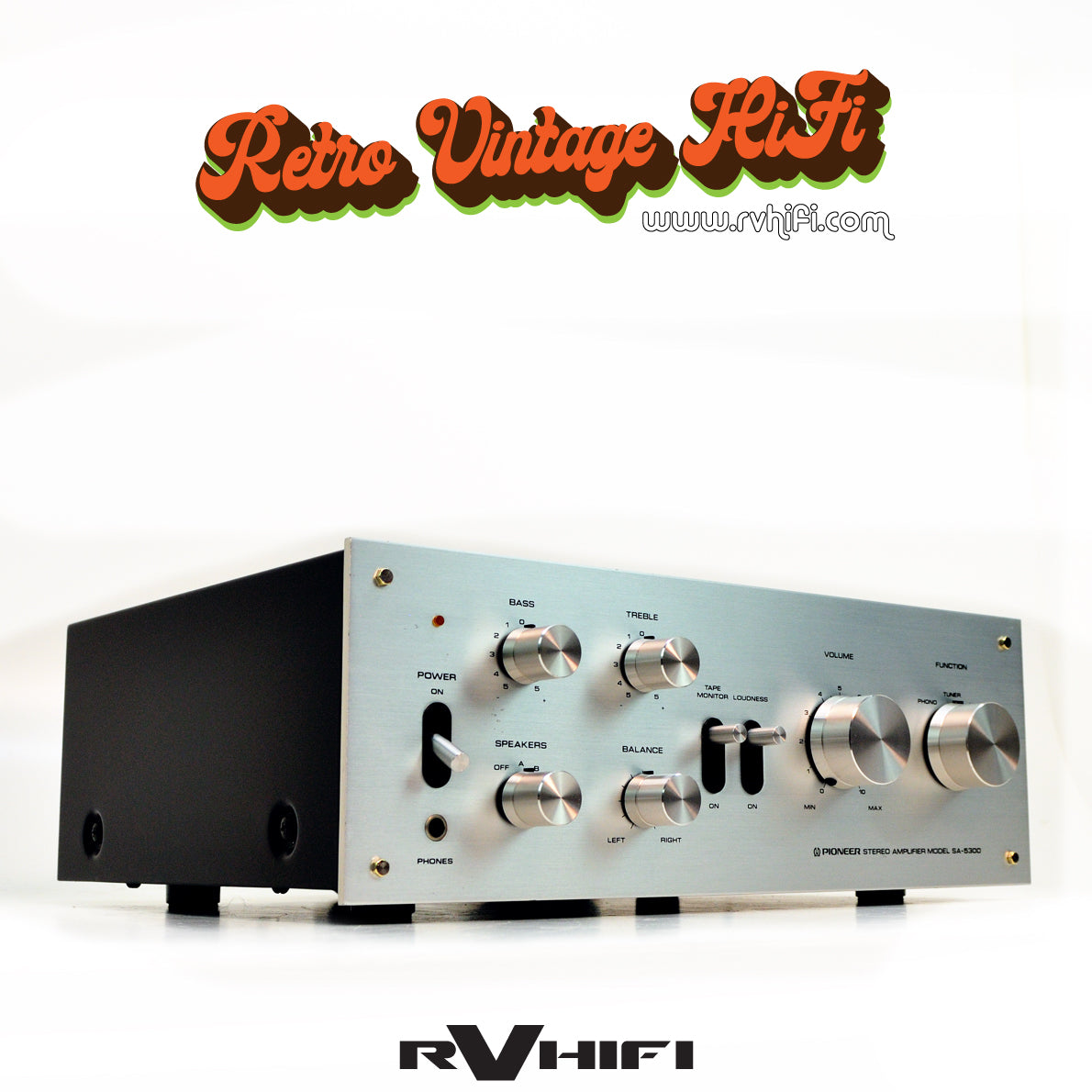

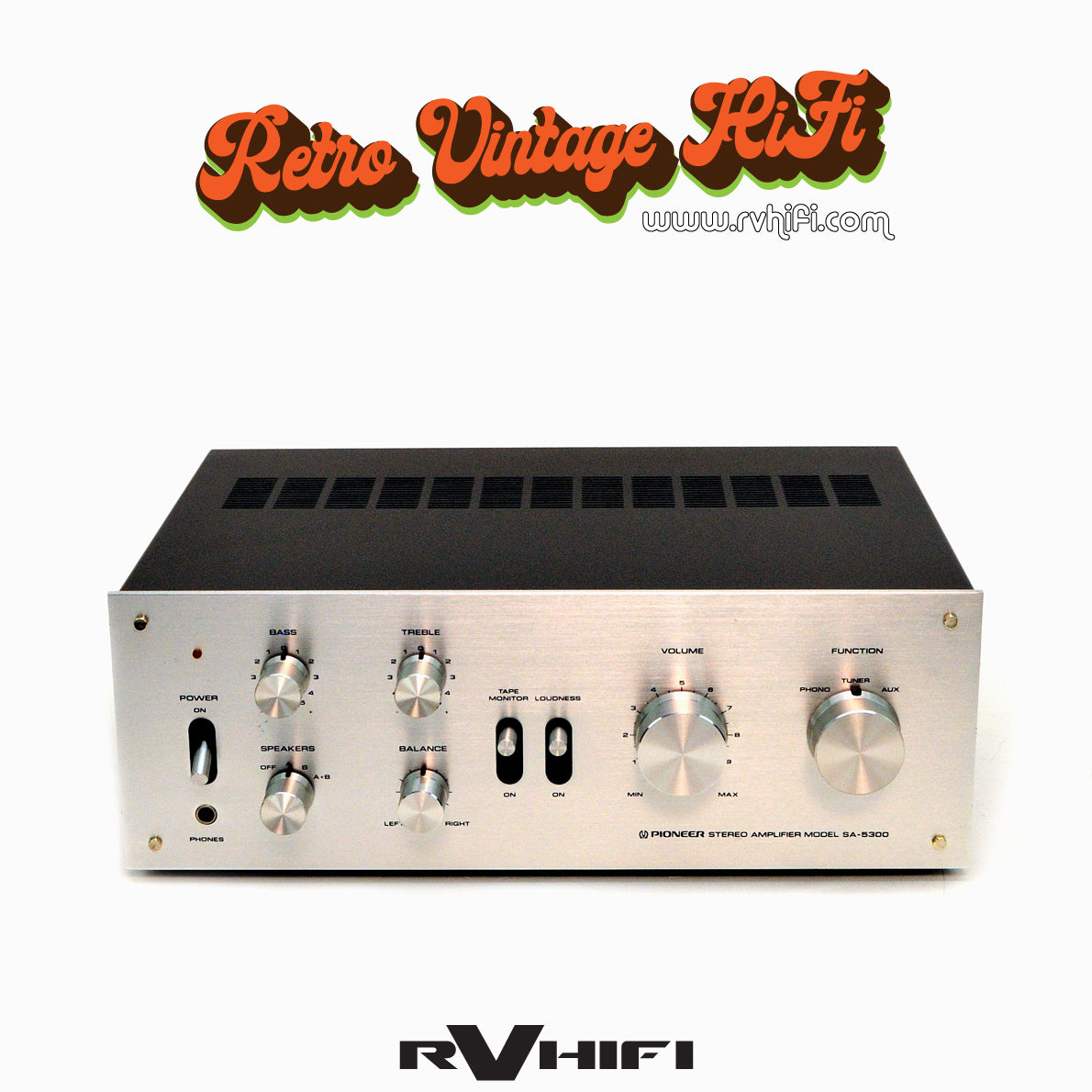

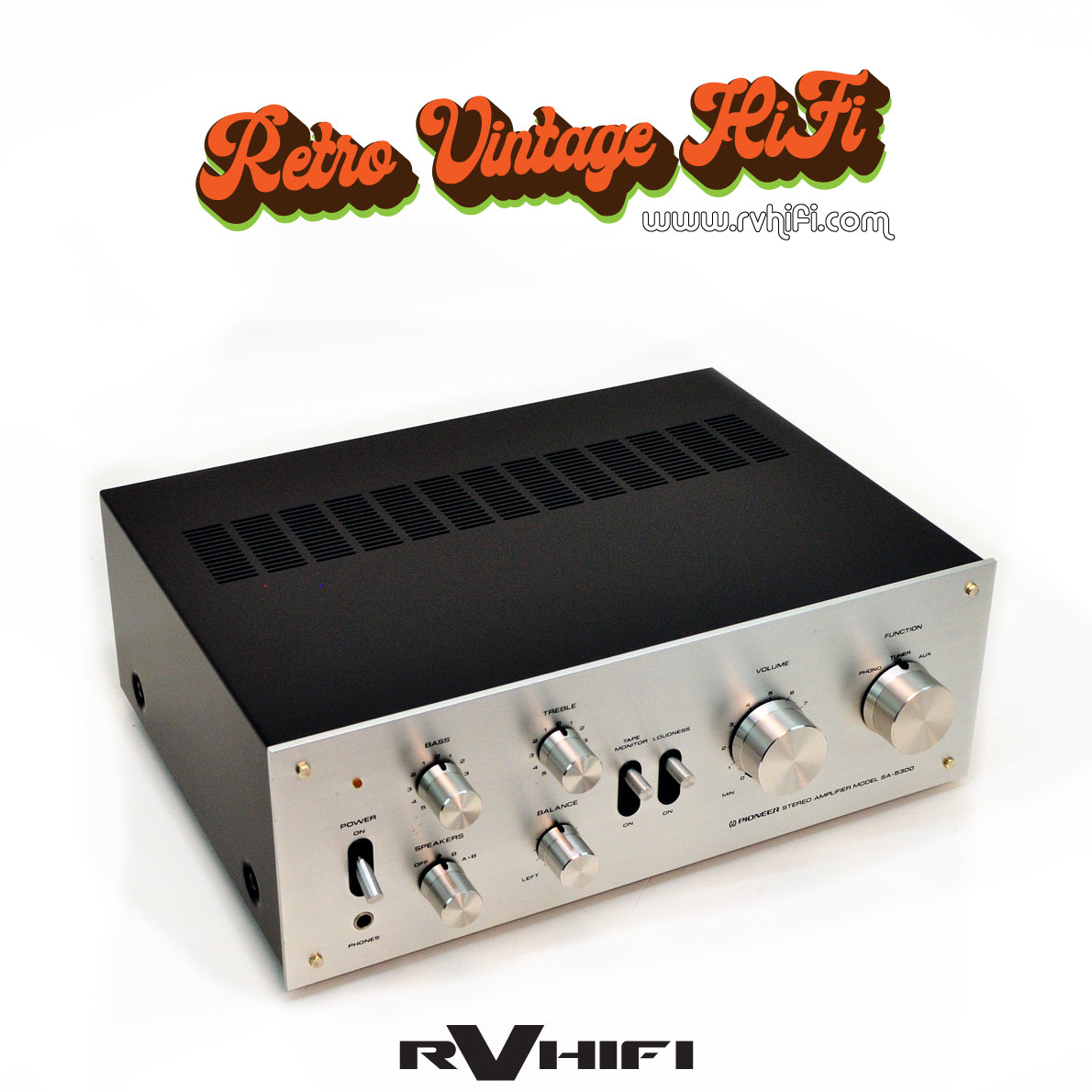

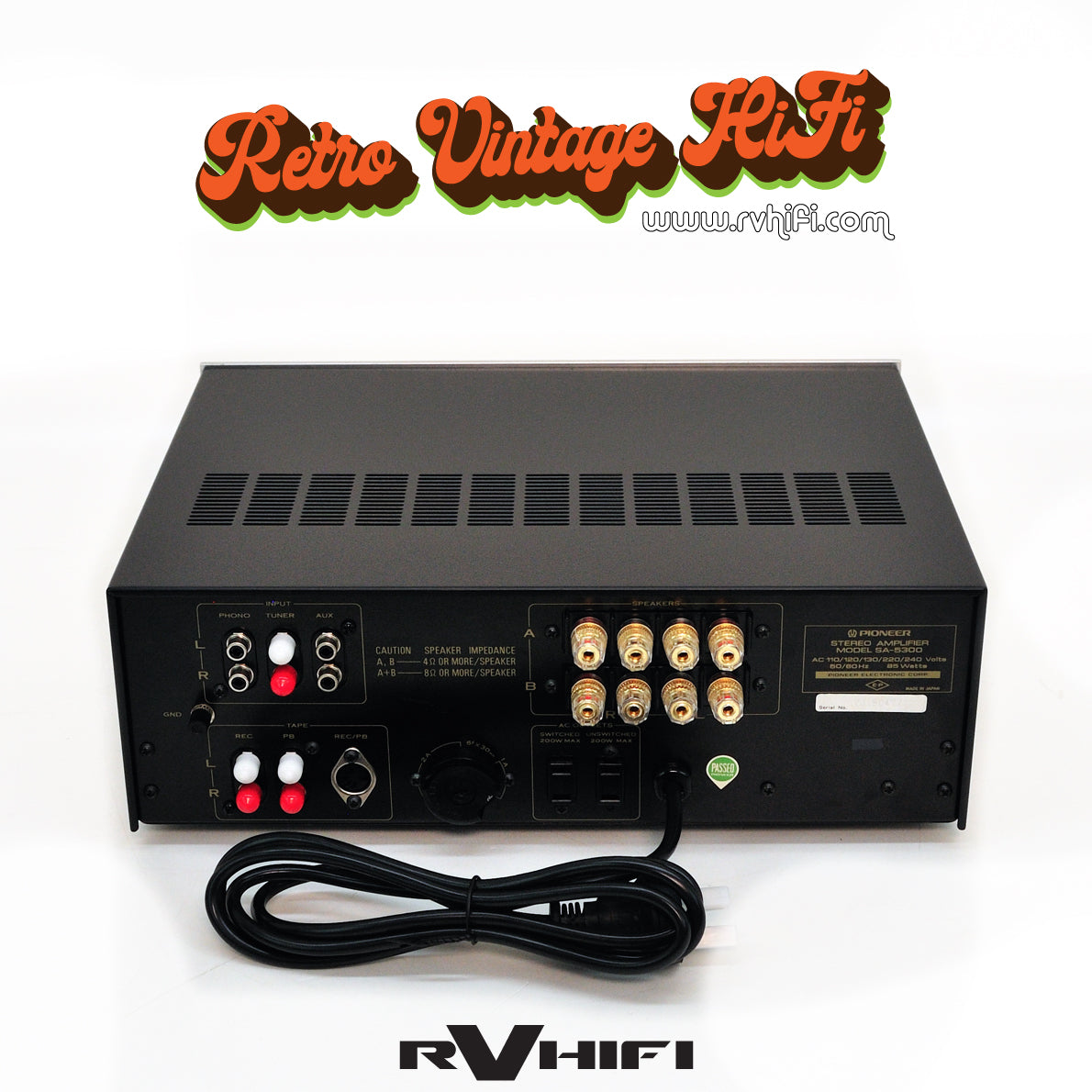

Pioneer SA-5300 Stereo Integrated Amplifier

Pioneer SA-5300 Stereo Integrated Amplifier

Description:
The Pioneer SA-5300 is an integrated stereo amplifier producing 10 watts per channel with no more than 0.8% total harmonic distortion.
Features include a tape monitor, loudness control and 2 pairs of speaker outlets.

Specifications:
Power output: 10 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 30kHz
Total harmonic distortion: 0.08%
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 70dB (MM), 85dB (line)
Dimensions: W350 x H125 x D282mm
Weight: 6.4kg
Year: 1974 - 1977
Serial No: VJ1904729D

Description of Works:
Replaced all electrolytic capacitors.
Inspect small signal transistors.
Inspect output transistors.
Dismantled, cleaned & deoxit potentiometers and switches.
New speaker banana binding posts.
Cleaned & detailed unit.
Repainted metal case.
New 240vac power lead.

Warranty: 6 months

RV HIFI says:
This classic Pioneer SA-5300 Stereo Amplifier has been carefully restored with quality Nichicon electrolytic capacitors, serviced circuitry, and upgraded speaker terminals. Its metal case was also repainted with a satin black finish. It is in excellent condition with only minor age marks, giving it a rating of 9.5/10 for appearance.
